drone+gitlab - docker安装

发表于 分类于 阅读次数：

最近研究了一下drone，尝试将drone和gitlab集合在一起，做CI服务。drone官方是有说明文档，支持gitlab的，见drone server的安装文档。我个人安装过程中碰了一些坑，在这里记下安装过程。

安装docker-compose

直接下载官方二进制文件安装

1
curl -L "https://github.com/docker/compose/releases/download/1.17.1/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose && chmod +x /usr/local/bin/docker-compose

获取gitlab授权

这里省略gitlab的安装，gitlab地址：172.16.0.189

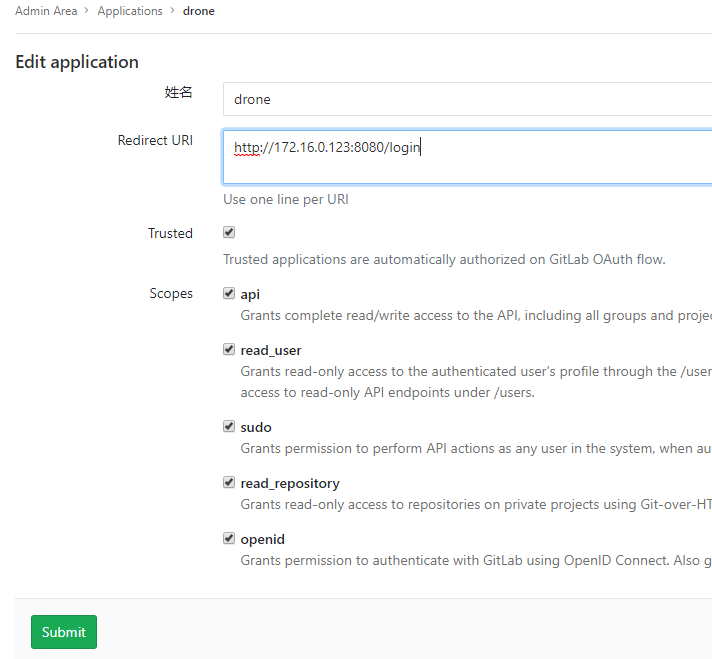

首先需要登录gitlab管理员账号，创建一个名为”drone”的应用

http://172.16.0.123:8080 是drone server的服务地址，创建完成后记得保存CLIENT_ID和CLIENT_SECRET

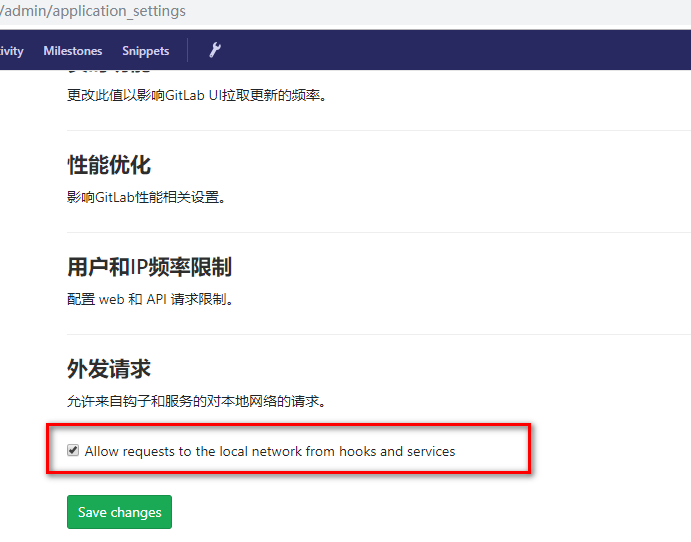

然后打开gitlab的网络限制 - 允许来自钩子和服务对本地网络的请求

安装drone 1.0

使用docker-compose的方式启动一个drone server和一个drone agent

docker-compose.yml 如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
version: "2"
services:
  drone-server:
    image: drone/drone:latest
    container_name: drone-server
    ports:
      - "8080:80"
      - "9000:9000"
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - ./drone/:/data/
    extra_hosts:
      - "git.rhel.cc:172.16.0.189"
    environment:
      - TZ=Asia/Shanghai
      - DRONE_GITLAB_SERVER=http://172.16.0.189
      - DRONE_USER_CREATE=username:zane,admin:true
      - DRONE_GITLAB_CLIENT_ID=af829bc7075cbe79603b79086f0d71654ecfde7092ba9b928d4327868e57e610
      - DRONE_GITLAB_CLIENT_SECRET=a5eedb2a1fcb21c33b0610125cd9743db2ab0d99e7931f2ba1603cf9717ea668
      - DRONE_GIT_ALWAYS_AUTH=false
      - DRONE_RUNNER_CAPACITY=2
      - DRONE_SERVER_HOST=172.16.0.123:8080
      - DRONE_SERVER_PROTO=http
      - DRONE_RPC_SECRET=secret
      - DRONE_TLS_AUTOCERT=false
      - DRONE_LOGS_DEBUG=true
      - DRONE_LOGS_COLOR=true
    restart: always
    networks:
      - default

  drone-agent:
    image: drone/agent:latest
    container_name: drone-agent
    command: agent
    depends_on:
      - drone-server
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
    extra_hosts:
      - "git.rhel.cc:172.16.0.189"
    environment:
      - TZ=Asia/Shanghai
      - DRONE_RPC_SERVER=drone-server:9000
      - DRONE_RPC_SECRET=secret
      - DRONE_RUNNER_CAPACITY=2
      - DRONE_RUNNER_NAME=172.16.0.123
      - DRONE_LOGS_DEBUG=true
      - DRONE_LOGS_COLOR=true
    restart: always
    networks:
      - default

networks:
  default:

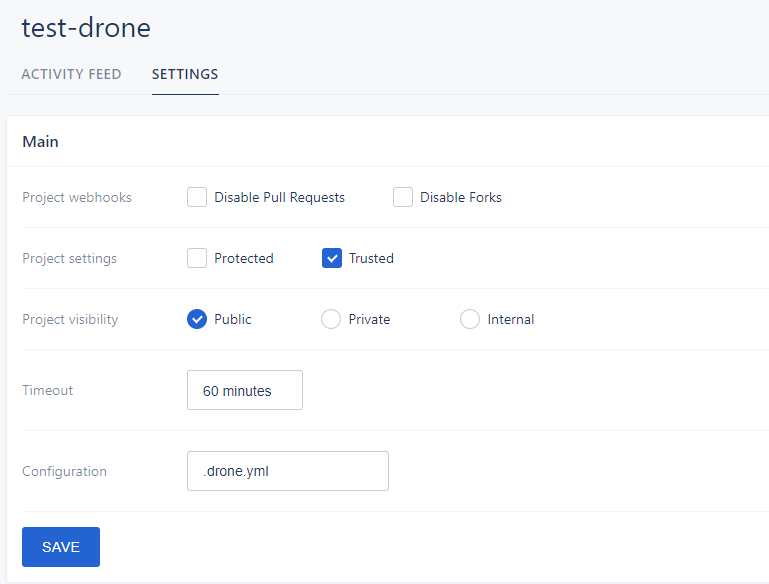

登录drone，项目配置设为Trusted

编写.drone.yml文件，测试使用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
workspace:
  base: /go
  path: src/github.com/chenzihaojie/test-drone

clone:
  git:
    image: plugins/git
    extra_hosts:
      - "git.rhel.cc:172.16.0.189"

pipeline:
  build:
    image: golang
    environment:
      TZ: Asia/Shanghai
    volumes:
      - /root/.ssh/:/root/.ssh/
    commands:
      - make
      - scp test-drone [email protected]:/tmp/test-drone
    extra_hosts:
      - "git.rhel.cc:172.16.0.189"
